Corner drain, stainless steel, with rotary siphon

Description Corner drain, stainless steel, with rotary siphon

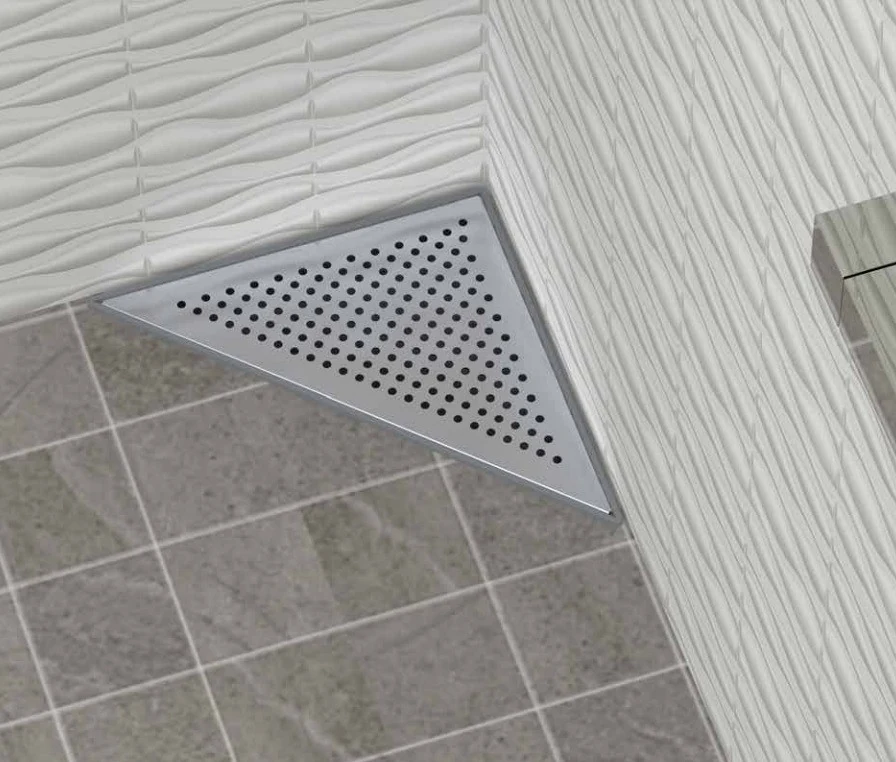

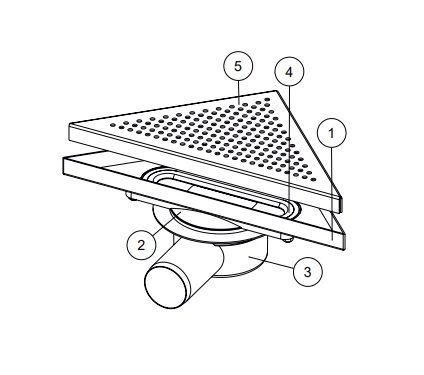

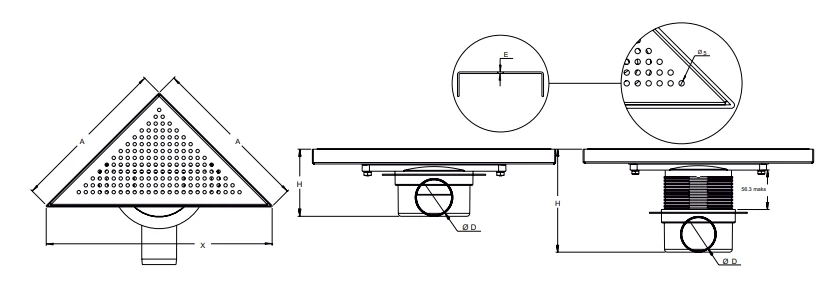

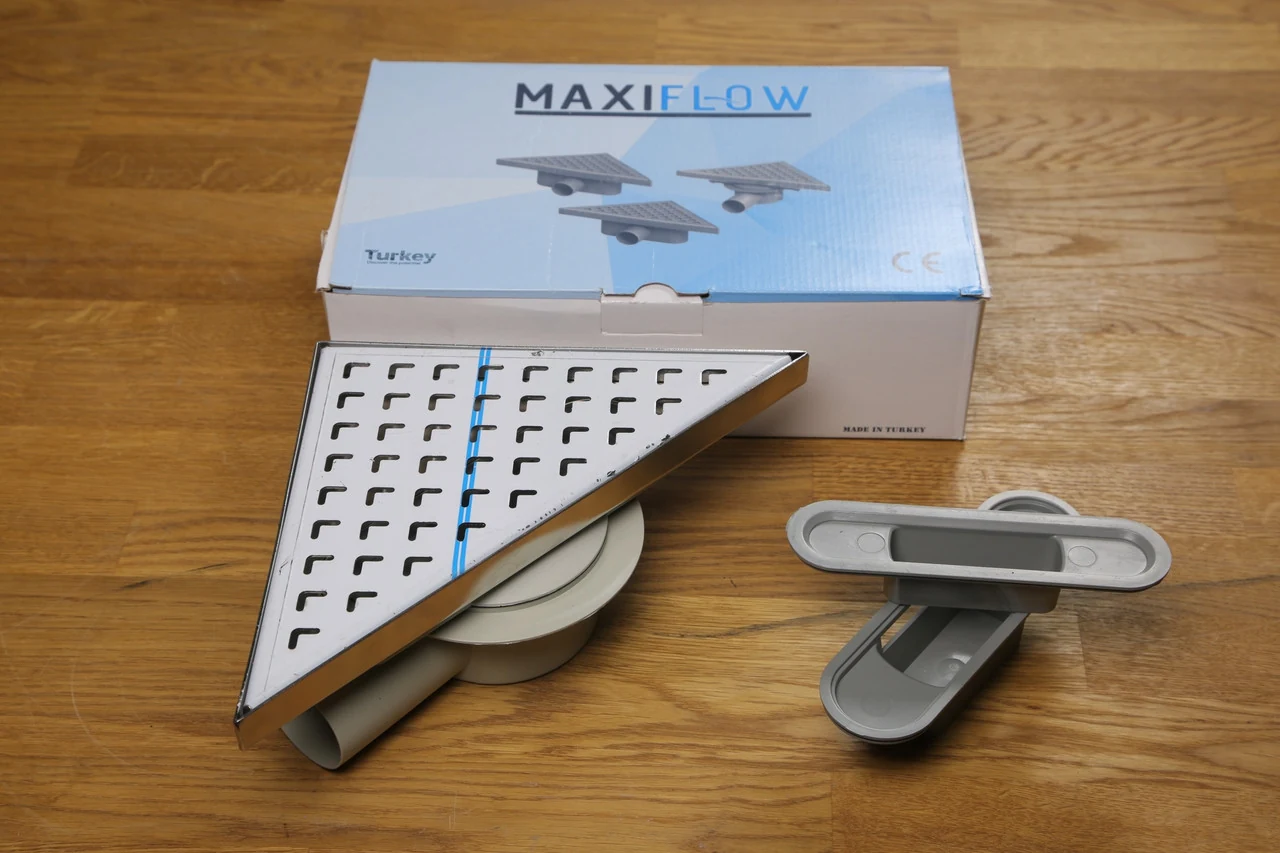

In social, industrial. water drainage systems must be installed in residential premises. Mandatory element in such a system is a trap or rain tray, which will provide effective water drainage. Stairs with stainless steel grates are suitable for private yards, swimming pools, showers, laboratories, productive hangars, etc. The stainless steel grates of the sewer trap can withstand a load of up to 300 kg, and have a throughput of 32 liters per minute. Taking into account the operating conditions, the ambient temperature should be from -20°С to +80°С, and the temperature of the discharged liquid should not exceed 70°С. Adhering to the specified conditions, you get the effective operation of the ladder. Dimensions of the ladder: The height of the entire ladder is 9 cm. The height of the ladder to the grate is 7 cm. The length of the grid base is 33 cm. The side ribs of the lattice are 23 cm long. The base and side edges of the ladder create a geometric shape – an isosceles triangle that is also rectangular. The complete set of a sewer ladder with a stainless steel grate includes the following elements: Ladder body made of AISI 304 steel; Rotary flange (hydraulic seal); Decorative grills made of stainless steel. There are 2 types of grids available: CIRCLE AND WAVE
